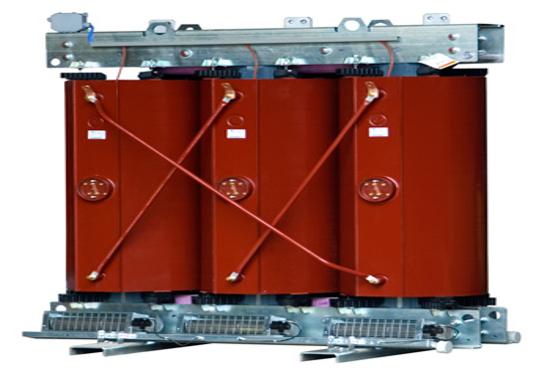

The high-voltage coil of this dry-type transformer is fabricated with metal conductors such as copper and aluminum. These conductors are also covered with class F insulation that can withstand up to 155 degrees Celsius. The insulation is made of resin with reinforced glass fiber. The expansion coefficient of both glass and fiber is almost similar, thus, this could reduce the chance of coil breaking when operating the transformer at high temperatures.
Ratings from 100kVA to 3MVA
Typical 11000/433V or 11000/415V voltage ratio, +/- 2.5 or 5%
Ecodesign Tier 2 losses
Aluminum or copper windings
ANAN or ANAF (fan) cooled
Supplied standalone (IP00) or with a variety of IP-rated enclosures
