EPC Rack-Mounted Modular Online UPS is a high space-saving product for medium data centers. It has 150kVA, and 200kVA can be chosen, The power module is 2U height, compatible with a 19” standard rack cabinet. The UPS can be configured to 3:1, 3:1, and 1:1. saving more than 33% server cabinet space, single module power density reaches 25kW/2U which is 50% higher than the industry mainstream level. Compared with the 10-90kVA UPS, it has higher power density and higher load capacity.
MODEL
|
EPC150/25C
|
EPC200/25C
|
|||
System Capacity
|
150kVA/150kW
|
200KVA/200kW
|
|||
Power Module Capacity
|
EPC PM 25kVA/25kW
|
||||
No. of Modules
|
6
|
8
|
|||
Main
|
|||||
Input
|
3P+N+PE
|
||||
Rate Voltage
|
380/400/415VAC (line-lin)
|
||||
Rate Frequency
|
50/60Hz
|
||||
Input Voltage Range
|
304~478Vac (line-line), full load 228V~304Vac (line-line), derate from 75% to 100% load
|
||||
Input Frequency Range
|
40Hz~70Hz
|
||||
Input PF
|
>0.99
|
||||
Input THDi
|
<3% (100% Linear load)
|
||||
Bypass
|
|||||
Rate Voltage
|
380/400/415VAC (line-line)
|
||||
Rate Frequency
|
50/60Hz
|
||||
Input Voltage Range
|
Settable, Default -40%~+25%
|
||||
Bypass Frequency Range
|
Settable, ±1Hz, ±3Hz, ±5Hz
|
||||
Bypass Overload
|
110% for 1 hour;125% for 10min ;150% for min;>150% for 200ms
|
||||
Output
|
|||||
Rate Voltage
|
380/400/415VAC (line-line)
|
||||
Rate Frequency
|
50/60Hz
|
||||
Output PF
|
1
|
||||
Output THDu
|
<1%? ,Linear load<6% ,Non-linear load( IEC/EN62040-3)
|
||||
Inverter Overload
|
<110%, 1 hour;110%~125%,10 mins;125%~150%,1min;>150%,200ms
|
||||
Battery
|
|||||
Battery Number
|
±240VDC
|
||||
Charging Accuracy
|
1%
|
||||
Charging Capacity
|
up to 20% * Output Power
|
||||
Battery Cold Start
|
Yes
|
||||
Efficiency
|
|||||
AC Mode
|
>96.0%
|
||||
Battery Mode
|
>95.5%
|
||||
System
|
|||||
Display
|
LED + LCD + Touch Screen
|
||||
Interface
|
RS232, RS485,Programmable Dry Contact
|
||||
Option
|
SNM Card, Parallel, SPD
|
||||
Environment
|
|||||
Operation Temperature
|
0 ~ 40 ℃
|
||||
Storage Temperature
|
-40 ~ 70 ℃
|
||||
Ralative Humidity
|
0 ~ 95% Non Condensing
|
||||
Noise (1 meter)
|
65dB @ 100% load, 62dB @ 45% load
|
||||
Phisical data
|
|||||
Module Dimension W*D*H(mm)
|
436*677*85
|
||||
Module Weight(kg)
|
18
|
||||
Cabinet Dimension W*D*H(mm)
|
485*900*1072
|
482*916*1550
|
|||
Cabinet Weight(kg)
|
140
|
160
|

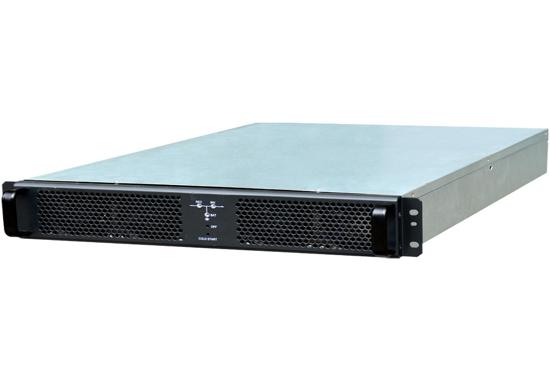

● High Power Density
25kVA power module in 2U height, saving great amount of space, easy for capacity expansion
● Rack Modular Design
Module design, compatible with 19” standard rack cabinet, convenient to be integrated with servers
● Battery Cold Start
UPS can be powered on from the battery without utility
● Friendly Interface
